Seadragon
Overview:
Before the introduction of IPX-rated phones, manufacturers developed a method of water-proofing smartphones by internally dispersing water-repellent gas through ports, creating a water tight sealant. We were approached to redesign for a smaller, retail ready, and create branding opportunities for the client.
Project Role: Lead Industrial Designer
Company: Superior Communications
Time: Designed in 2016
Duration: 2 months
Tools: Solidworks, Keyshot, Rapid Prototype, Sketching
Material Spec: Aluminum, Powdercoat
Availability: Demostration for Marketing
Clients Needs
Our client wanted the design used for demonstration purposes in retail stores. The idea was to have an attendant place a smartphone into the device and start the evaporation for customers. The existing process for demonstration would require 20 min, which included inserting a smartphone, refilling the chamber with a liquid solution, screwing the knob to close the lid, and completion of the evaporation process. The client also requested a more “high-tech” look that could resemble a kitchen appliance while creating branding opportunities.
We wanted to develop a seamless design and user experience for the attendant and strived to reduce the demonstration time.

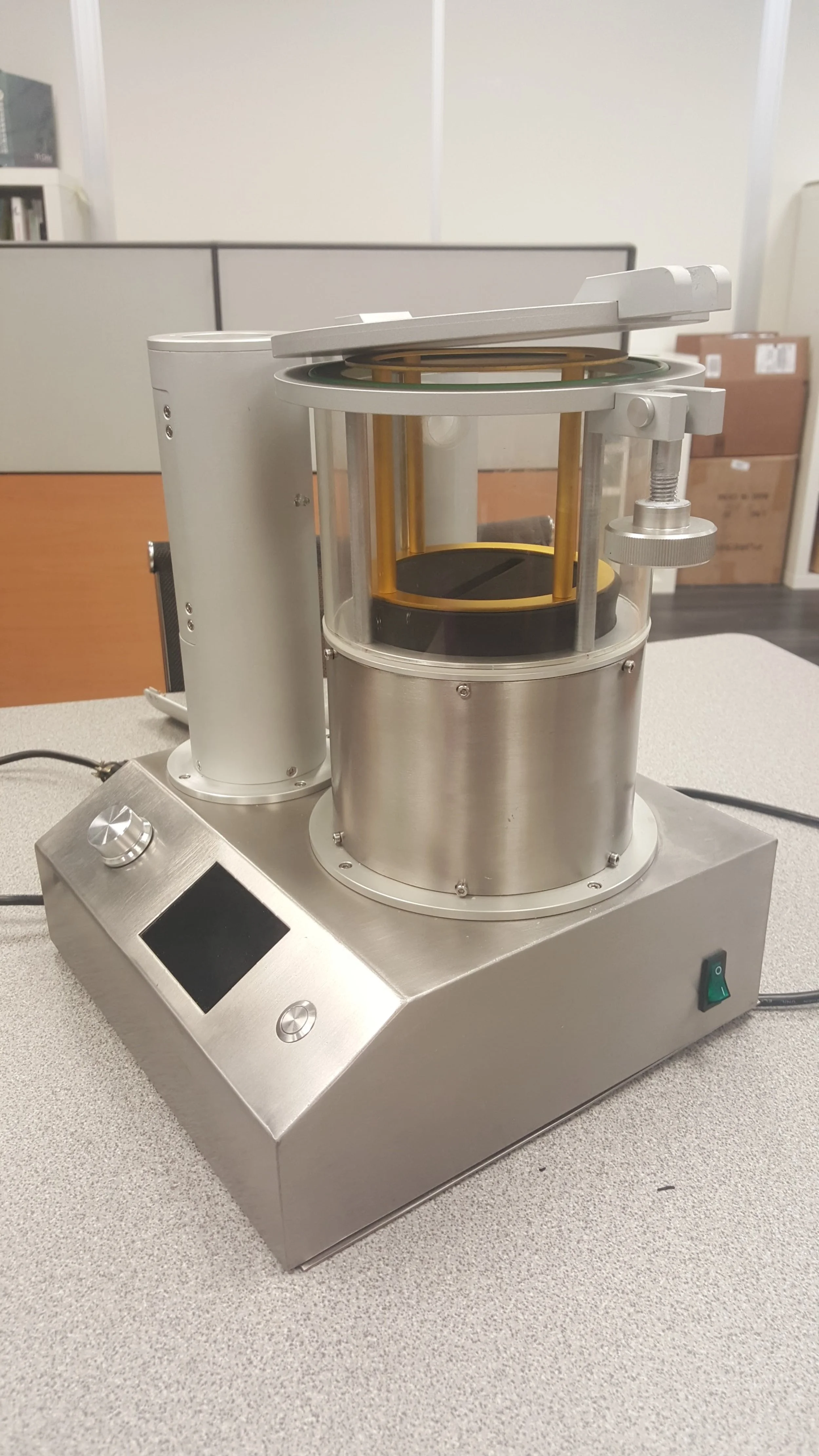

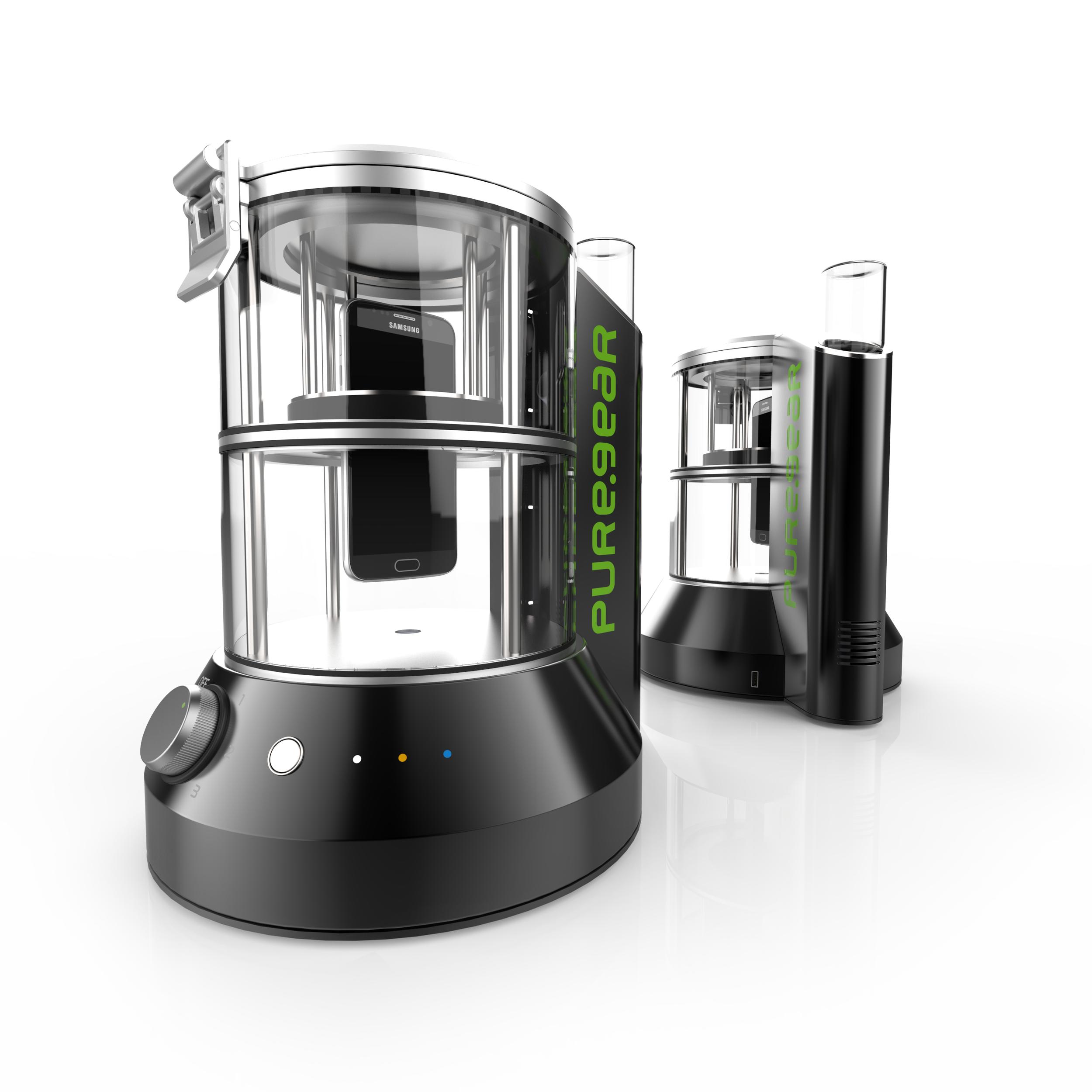

Existing Design
• Demonstration took 20 minutes
• Pouring bottled solution into chamber
• Large internal spacing in main housing
• Unused secondary tower
• Screwing knob lid closure
• Limited visibility into evaporation chamber
Solution
• Reduce demonstration time
• Introduce cartridge refilling system
• Reduce main housing footprint
• Replace screwing knob
• Showcase evaporation process
Hand Sketches

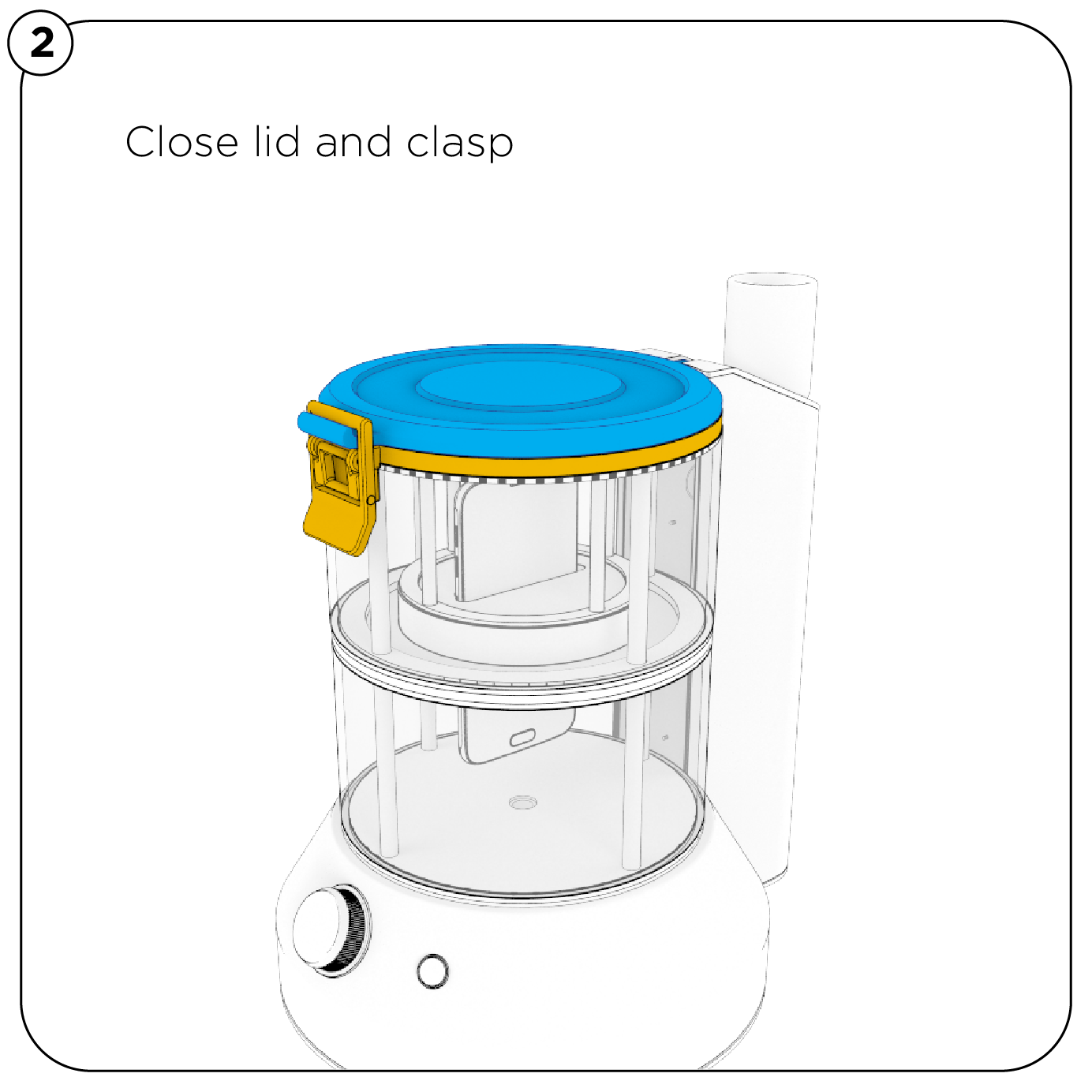

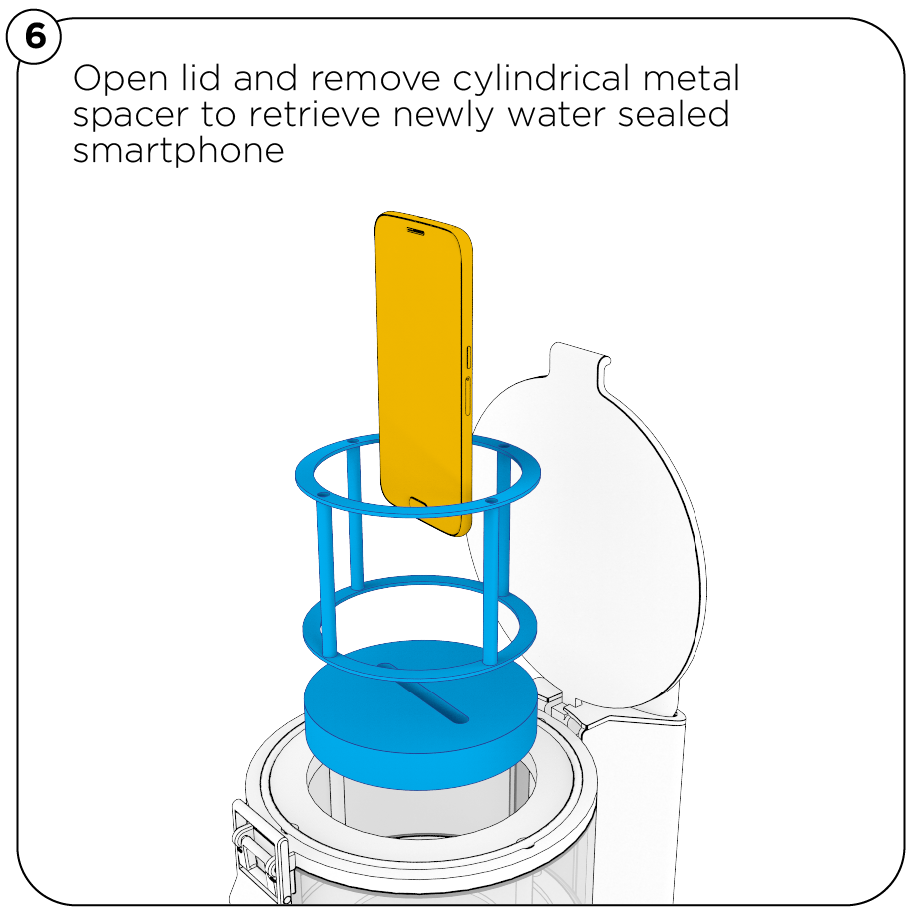

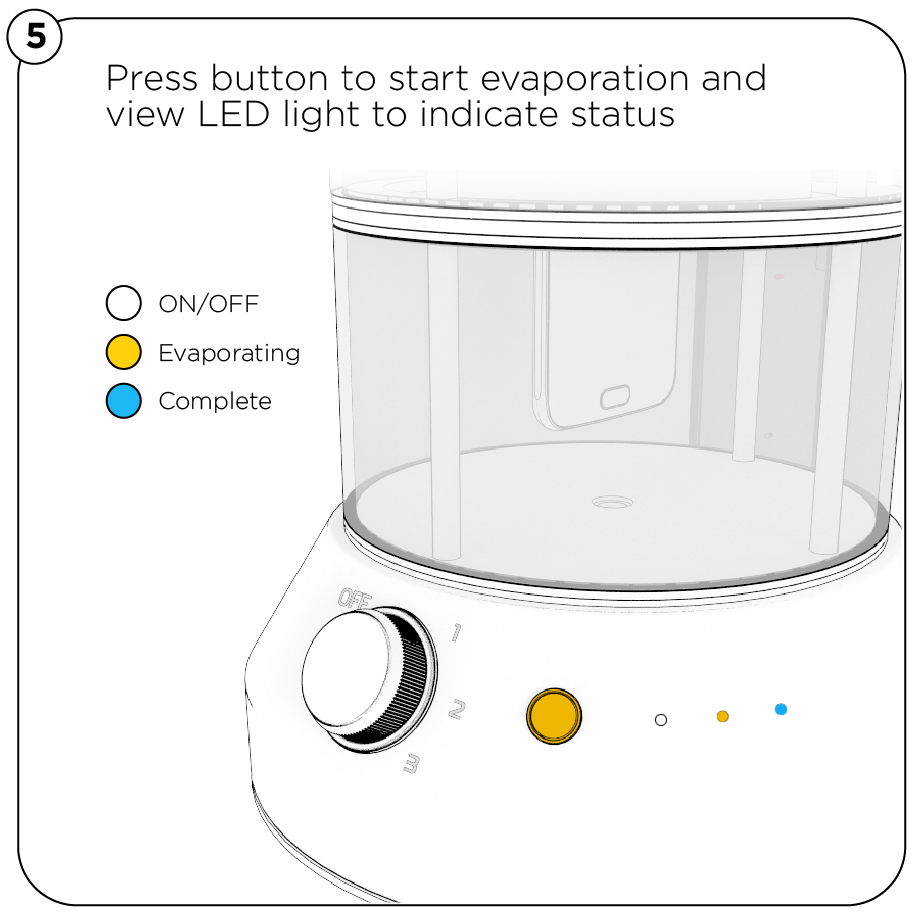

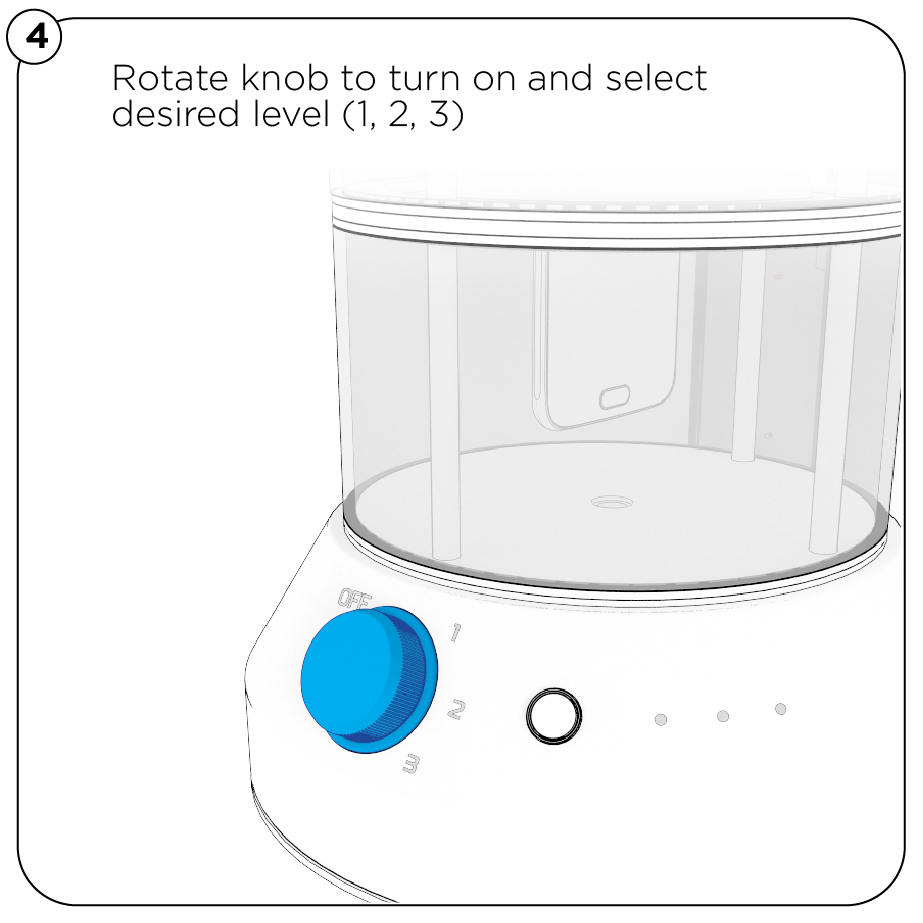

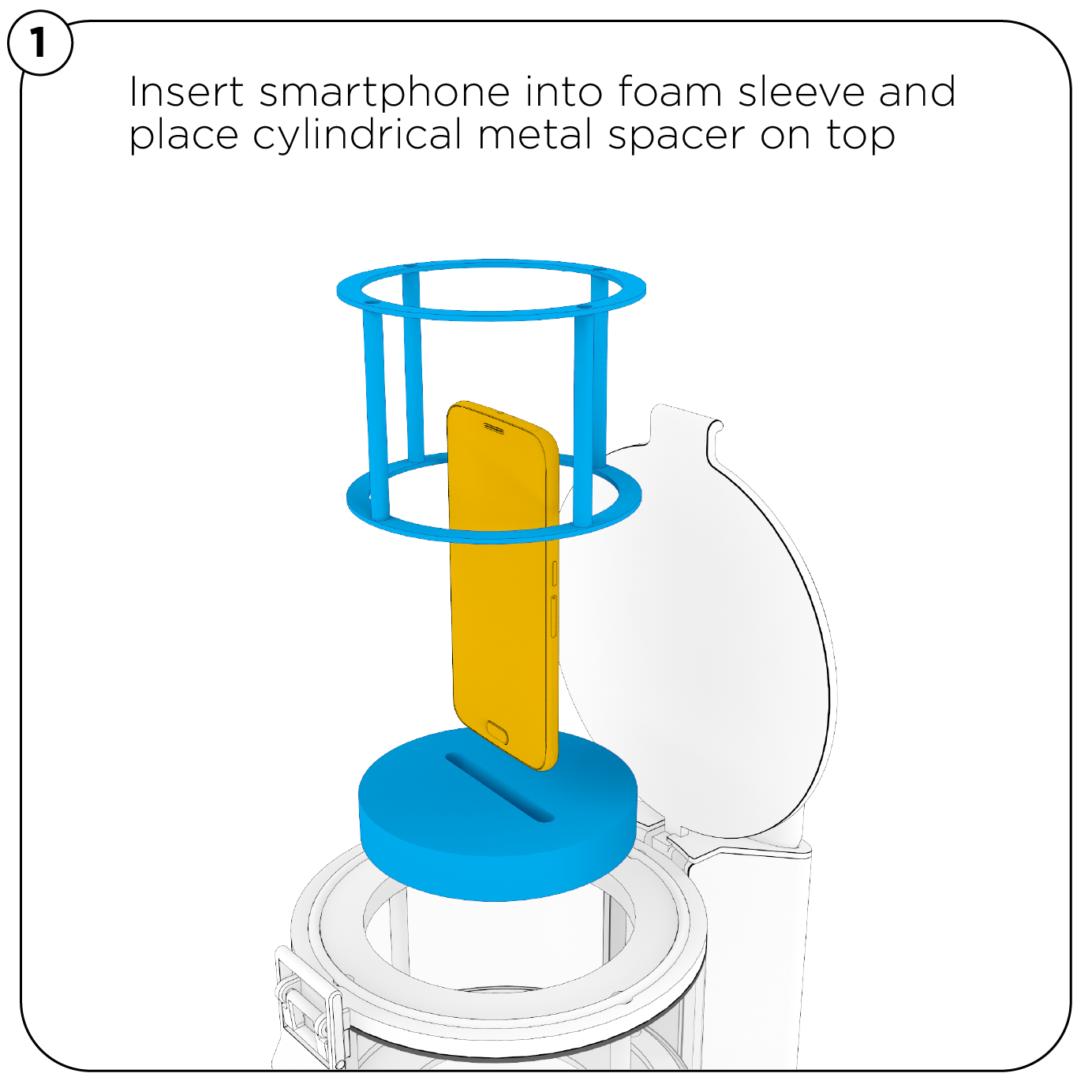

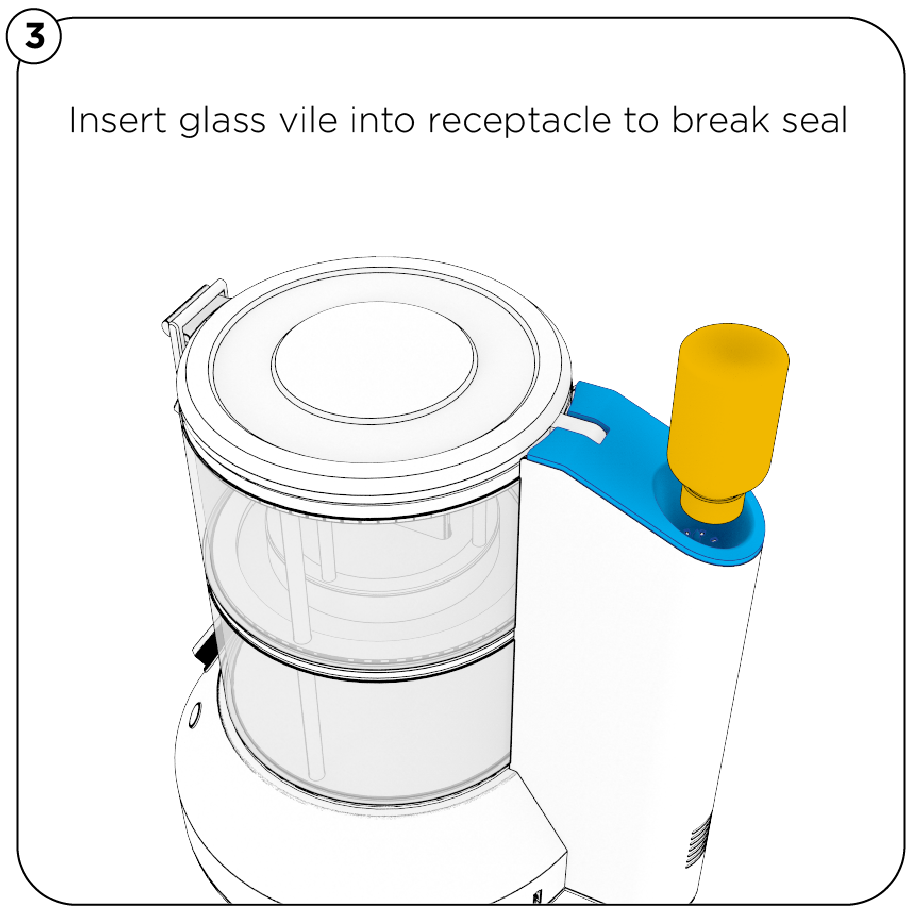

Tutorial
